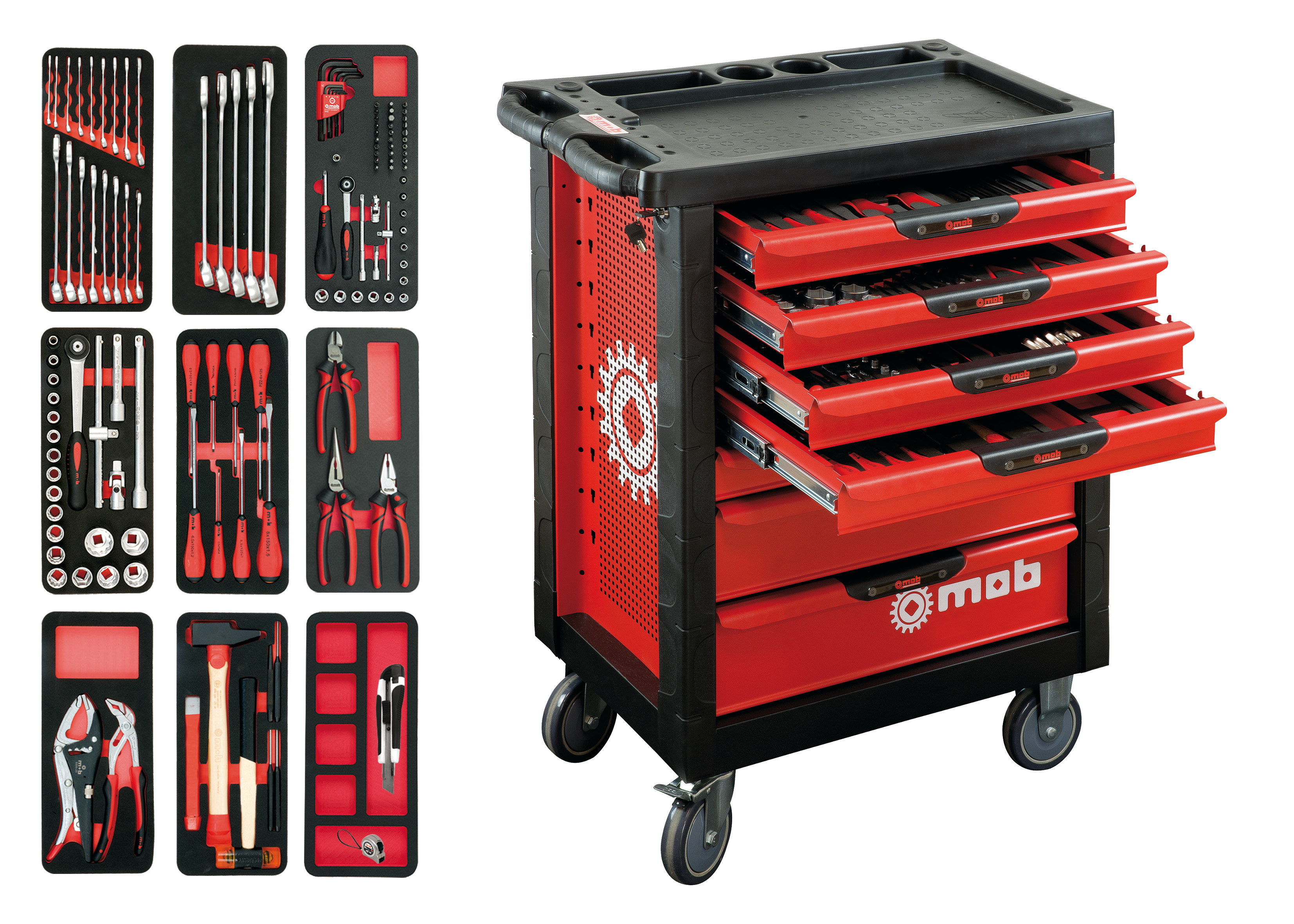

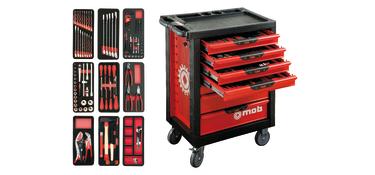

9516PROLINER 7-DRAWER TROLLEY - 126 PIECES Print Download in high definition Check PDF file


Description

Supplied with 126 tools stored in foam modules. Drawer dimensions: 545 x 400 mm. Each drawer can accommodate 3 single-width modules; 5 drawers H 60 mm - 1 drawer H 120 mm - 1 drawer H 140 mm. Construction resistant to 850 kg static load. Drawers resistant to 25 kg. Drawers locked to prevent accidental opening when moving, unlocked by simply pressing the handle. Central locking of drawers - 2 keys. 2 swivel castors, 1 with brake and 2 fixed castors. Ø 125 mm wheels. Injected polypropylene top with anti-drop edges. The handle is integrated into the top. Possibility of attaching a 100 mm vice with a rotating base. Epoxy paint finish. Perforated sides to accommodate accessories. Protective bumpers on the corners of the trolley. Metal and plastic drawer handles. The trolley comes with a set of stickers (pictograms, colours, initials and numbers). Each drawer has a back mat. Each drawer can hold 3 single modules.

L mm##POIDS## kgGarantie (nb d'année) / GRef.##COND##Code EAN / EAN
Proliner88IN951612670113303809517128
    9800
    6-7-8-9-10-11-12-13-14-15-16- 17-18-19-21-22-24 mm

    9801
    27-28-29-30-32 mm

    9814
    Module vide poche Empty pocket unit

    9803
    13 douilles 6 pans 1/4 : 3.2-4-5-5,5-6-7-8-9-10-11-12-13-14 mm - 1 poignée coulissante de 115 mm - 1 cliquet - 1 cardan - 2 rallonges 50 et 125 mm - 1 jeu de 9 clés mâles - 30 embouts de vissage - 1 poignée emmanchée - 1 douille porte-embouts 1/4’ 6-point sockets: 3.2-4-5-5.5-6-7-8-9-10-11-12-13-14 mm - 115 mm sliding handle - 1 ratchet - 1 universal joint - 50 and 125 mm extensions - 1 set of 9 hex keys - 30 screwdriver bits - 1 square drive handle - 1 bit holder socket

    9804
    18 douilles 6 pans 1/2 : 8-9-10-11-12-13-14-15-16-17- 18-19-21-22-24-27-30-32 - 1 poignée coulissante de 255 mm - 1 cliquet - 1 cardan - 2 rallonges 125 et 250 mm 1/2 6-point sockets: 8-9-10-11-12-13-14-15-16-17- 18-19-21-22-24-27-30-32 - 255 mm sliding handle - 1 ratchet - 1 universal joint - 125 and 250 mm extensions

    9805
    Fente : 2,5x75 - 3,5x100 - 4x100 - 5,5x125 - 6,5x150 - 8x150 avec écrou PH : 1 - 2 Slotted : 2,5x75 - 3,5x100 - 4x100 - 5,5x125 - 6,5x150 - 8x150 with nut PH : 1 - 2

    9808
    1 pince universelle de 180 mm - 1 pince coupante diagonale de 160 mm - 1 pince à becs demi-ronds de 200 mm 180 mm combination plier - 160 mm diagonal cutting plier - 200 mm half rond nose plier

    9807
    1 pince multiprise - 1 pince étau à becs longs 1 water pump plier - 1 grip lock plier with long jaws

    9812
    1 marteau rivoir hickory 32mm - 1 massette à embouts plastique 32mm - 1 burin de mécanicien 200 mm - 1 pointeau corps moleté - 3 chasse goupilles de 4, 5 et 6 mm 32mm hickory mechanic's hammer - 32mm plastic hammer - 200mm mechanic's chsel - center punch - pin punches 4, 5 and 6 mm

    6247
    Lame de 18 mm 18 mm blade

    6270
    3 m
